That warning message on your Ford Fusion dashboard can be frustrating. The “Check Fuel Fill Inlet” light pops up when you least expect it.
Don’t worry. This guide will walk you through everything you need to know.
I’ve worked on hundreds of Ford Fusions in my shop. This problem is more common than you think. Let me show you how to fix it.

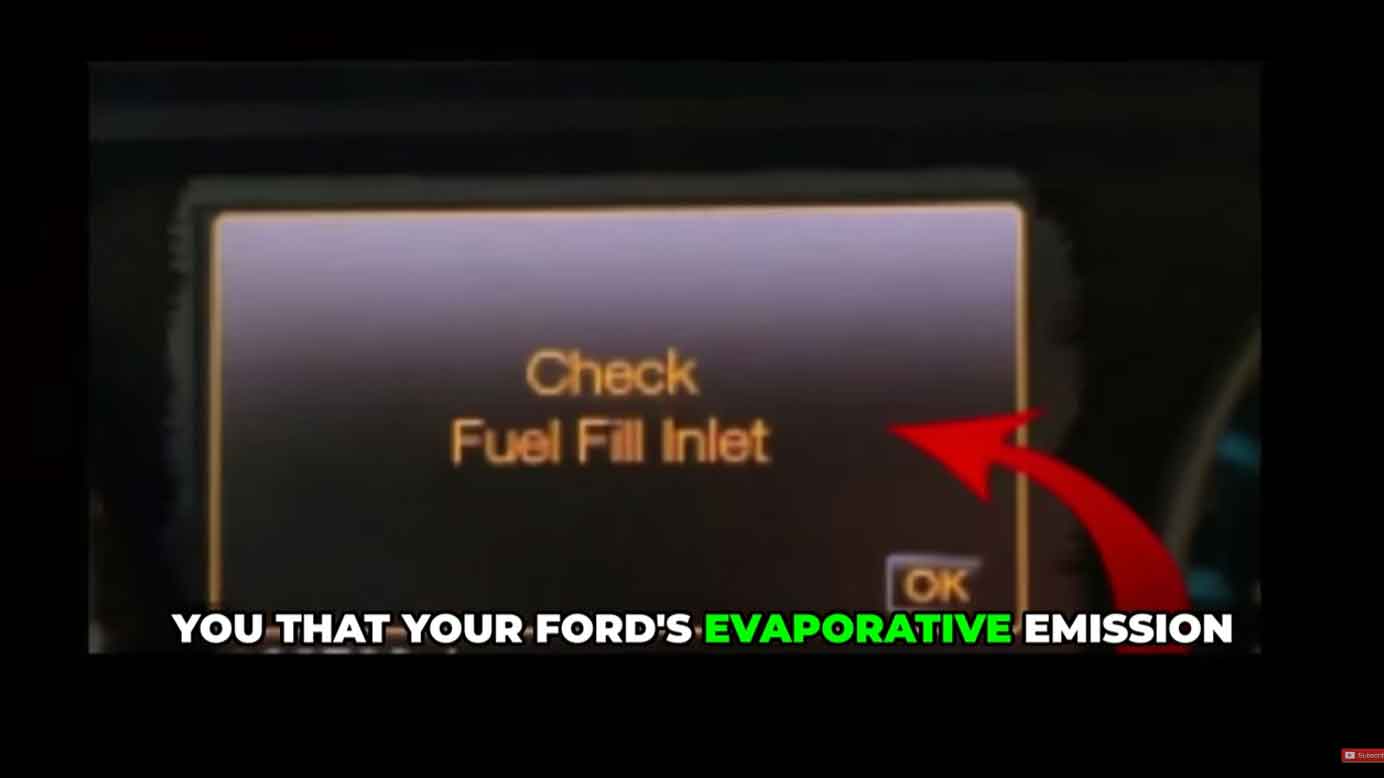

What Does “Check Fuel Fill Inlet” Mean?
This warning appears when your Ford’s computer detects a problem. Something is wrong with your fuel system.
The issue is usually around the fuel cap area. Your car’s evaporative emission system (EVAP) has detected a leak.
Here’s what’s happening:
Your Ford has sensors that monitor fuel vapors. When vapors escape, the system knows something is wrong. The warning light comes on to protect your engine and the environment.
Common Causes of This Warning Message
From years under the hood, I’ve found these are the main culprits:
1. Loose or Missing Gas Cap
This is the number one reason I see in my shop. Someone forgets to tighten the cap after filling up.
Your gas cap needs to click at least three times. If it doesn’t seal properly, fuel vapors leak out.
Sometimes the cap falls off completely. Check if yours is still there.
2. Damaged Fuel Cap Seal
The rubber seal inside your cap wears out over time. Heat and cold make it crack.
I’ve seen caps that look fine on the outside. But the seal inside is completely dried out.
This happens after about 50,000 miles of normal use.
3. Faulty Capless Fuel Filler
Many newer Ford Fusions don’t use a traditional cap. They have a capless system instead.
The spring-loaded door can get stuck. Dirt and debris cause problems too.
In my experience, these systems fail more often in dusty areas.
4. Cracked Fuel Filler Neck
The fuel filler neck is the tube that connects your gas tank to the fuel door. It’s made of plastic or rubber.
Road debris can crack it. Salt and chemicals from winter roads eat away at it.
I find this problem most often on Ford Fusions from 2010-2016.
5. Bad Purge Valve
The purge valve controls fuel vapor flow. When it sticks open or closed, you get this warning.
This part is located near the engine. It’s a small solenoid that opens and closes electronically.
A faulty purge valve can cause rough idling too.
6. Leaking EVAP System Hoses
Your car has several hoses that carry fuel vapors. These rubber hoses crack over time.
Even a tiny crack triggers the warning. The system is very sensitive.
When I service a car like this, I inspect every inch of these hoses.
Step-by-Step Diagnosis Guide
Let me show you how to find the problem yourself. You don’t need fancy equipment for basic checks.
Step 1: Check Your Gas Cap First
This takes 30 seconds. Open your fuel door and look at the cap.
Is it on tight? Turn it clockwise until you hear three clicks.
Look at the rubber seal. Is it cracked or missing? Does it feel hard and dry?
If the seal looks bad, replace the cap. They cost around $15-25.
Step 2: Reset the Warning Light
After tightening or replacing the cap, you need to reset the system.
Here’s how:
- Turn off your engine
- Wait 5 minutes
- Start the car again
- Drive normally for 20-30 miles
The light should turn off on its own. If it doesn’t, keep reading.
Step 3: Inspect the Capless Fuel System (If Equipped)
Push the fuel nozzle flap with your finger. Does it spring back quickly?
Look inside with a flashlight. Do you see dirt, leaves, or debris?
Clean it out with a soft cloth. Don’t use any harsh chemicals.
Step 4: Check for Visible Cracks
Look at the fuel filler neck from underneath your car. You might need a flashlight.
Check for:
- Cracks in the plastic
- Loose connections
- Wet spots from fuel leaks
- Damaged hoses
Be careful. Don’t smoke or use open flames near the fuel system.
Step 5: Use an OBD-II Scanner
You can buy a basic scanner for $20-30. I use one every day in my shop.
Plug it into the port under your steering wheel. Turn on the ignition.
Look for these common codes:
- P0457: Loose gas cap or EVAP leak
- P0442: Small EVAP leak detected
- P0455: Large EVAP leak detected
- P0446: Purge valve problem
Write down the code numbers. This helps pinpoint the exact issue.
DIY Repair Solutions
Some fixes are easy enough for anyone. Others need a mechanic’s help.
Easy Fix: Replace the Gas Cap
This is the simplest repair. Buy an OEM Ford cap or a quality aftermarket one.
I recommend ACDelco or Motorcraft brands. They last longer than cheap ones.
Just unscrew the old cap and screw on the new one. Make sure it clicks three times.
Cost: $15-25 Time: 2 minutes
Moderate Fix: Clean the Capless Fuel System
You’ll need:
- Soft cloth
- Compressed air (optional)
- Flashlight
Open the fuel door and look inside. Wipe away any dirt you see.
Use compressed air to blow out debris. Be gentle with the spring mechanism.
Test the flap by pushing it. It should snap back quickly.
Cost: $0-5 Time: 10 minutes
Advanced Fix: Replace the Purge Valve
This requires some mechanical knowledge. The valve is usually near the engine intake.
You’ll need:
- Socket set
- New purge valve (part #CV6Z9C915A for most Fusions)
- 30-45 minutes
Steps:
- Disconnect the battery
- Locate the purge valve (check your manual)
- Unplug the electrical connector
- Remove the hoses
- Unbolt the old valve
- Install the new one
- Reconnect everything
Cost: $50-80 for parts Time: 30-45 minutes
Professional Fix: Fuel Filler Neck Replacement
This job needs a lift and proper tools. Don’t try this at home.
In my shop, we:
- Lift the vehicle safely
- Drain the fuel tank partially
- Disconnect all hoses and clamps
- Remove the old filler neck
- Install the new one
- Test for leaks
Cost: $200-400 (parts and labor) Time: 1-2 hours
How to Prevent This Problem
I tell all my customers these simple tips:
Always tighten your gas cap properly. Three clicks minimum. No exceptions.
Replace your gas cap every 50,000 miles. The seal wears out. It’s cheap prevention.
Keep your fuel door area clean. Wipe it down when you wash your car.
Use quality fuel from busy gas stations. Contaminated fuel causes problems.
Don’t top off your tank. Stop when the pump clicks off. Overfilling damages the EVAP system.
Get regular inspections. Have a mechanic check your fuel system yearly.
When to See a Mechanic
Some problems are beyond DIY repairs. See a professional if:
- The warning light stays on after replacing the gas cap
- You smell gasoline inside or outside your car
- Your check engine light is on too
- The car runs rough or stalls
- You see fuel leaking anywhere
- The OBD scanner shows multiple codes
Don’t ignore fuel system problems. They can cause bigger issues down the road.
Cost Breakdown for Professional Repairs
Here’s what you can expect to pay at a repair shop:
Diagnosis: $50-100 Most shops charge for computer scanning and inspection.
Gas Cap Replacement: $25-50 Simple but they charge for their time.
Purge Valve Replacement: $150-300 Parts plus labor. Prices vary by location.
Fuel Filler Neck Replacement: $200-400 This includes the part and 1-2 hours of work.
EVAP System Smoke Test: $100-150 This finds tiny leaks you can’t see.
Full EVAP System Repair: $300-800 If multiple parts need replacement.
Frequently Asked Questions
Can I drive with this warning light on?
Yes, you can drive. But fix it soon. The problem won’t damage your engine immediately.
However, you might fail an emissions test. Your fuel economy could drop too.
Will this warning go away on its own?
Sometimes. If you just filled up and forgot to tighten the cap, it might clear after a few drive cycles.
But usually, you need to fix the problem first.
How long does it take for the light to reset?
After fixing the issue, drive 20-30 miles. The computer needs time to retest the system.
If it doesn’t clear after 50 miles, something is still wrong.
Is this covered under warranty?
It depends. Most Ford warranties cover 3 years or 36,000 miles.
The EVAP system has a separate emissions warranty. That covers 8 years or 80,000 miles in most states.
Check your owner’s manual or call your dealer.
Can bad gas cause this warning?
Not usually. Bad fuel causes different problems.
But contaminated fuel can damage other parts. Always use quality gas.
Final Thoughts From the Shop
The “Check Fuel Fill Inlet” warning is annoying but usually simple to fix. Start with the easy stuff first.
In my shop, 70% of these cases are just loose gas caps. Another 20% need a new cap.
Only about 10% require serious repairs.
Don’t panic. Check your cap, reset the system, and see what happens.
If the problem persists, grab an OBD scanner or visit a trusted mechanic. We deal with this issue all the time.
Your Ford Fusion is a reliable car. This warning is just your car talking to you. Listen and respond, and you’ll be back on the road worry-free.
Stay safe out there. And always tighten that gas cap.
